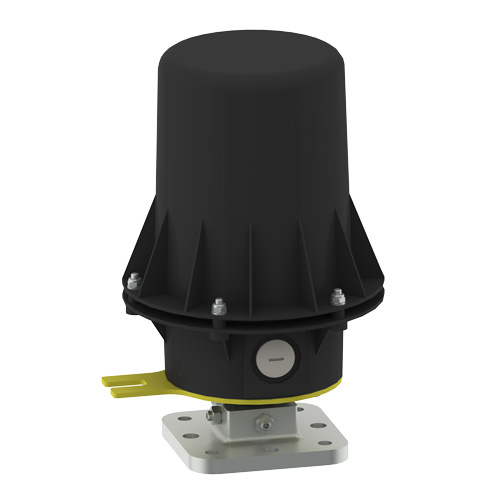

ENCLOSED SLIP RING ASSEMBLY 45/1

ENCLOSED SLIP RING ASSEMBLY 45/1

SRK-CONFIGURATION: ****************** 4X21A+PE-415V; 100% DUTY CYCLE; MS+CU (TYPE 45/1) WIRING TERMINATED AT TERMINAL BOARD . TECHNICAL DETAILS: ******************* HOUSING: PLASTIC PA6.6 HEIGHT OF BOTOM PART (h1): 125 MM HEIGHT OF UPPER PART (h2): 90 MM TOTAL HEIGHT (H): 215 MM . CABLE FEEDTHROUGH: - RING SIDE: M25 - CURRENT COLLECTOR-SIDE: 1X M25; 1X M32 . REVOLUTION: 1-100 1/MIN PROTECTION GRADE: IP65 DIMENSION SHEET: MZ51-S900-0031-D/E . THE DATA ABOUT AMPACITY REFER TO INDIVIUAL SLIP RINGS INCLUDING CURRENT COLLECTOR. THE ACTUAL AMPACITY OF THE COMPLETE SLIP RING ASSEMBLY CAN DIFFER SIGNIFICANTLY DEPENDING ON THE EXISTING GENERAL CONDITIONS (E.G. NUMBER OF SLIP RINGS, CABLE TYPE, OPERATING CONDITIONS).  THE RELEVANT CONVERSION FACTORS FOR AMPERAGE ACCORDING TO DIN 0298 MUST BE CONSIDERED.
